Fire Retardant Enter Long-range Roller Shutter Door
Fire Retardant Enter Long-Range Roller Shutter Door-has passed the Fire Retardant Identification Certificated by NFTC ，this kind roller shutter door can effectively prevent the occurrence and spread of fire and improve the safety factor of public places.
- SUDIHAO
- Guangdong
- 5-10 days
Details
Fire Retardant Enter Long-range Roller Shutter Door
This door can meet the requirement of public places such as shop mall,bank, restaurant,commercial building.Also this kind door is very easy to install and assemble,that way save a lot of human resources and cost.
Products Features:

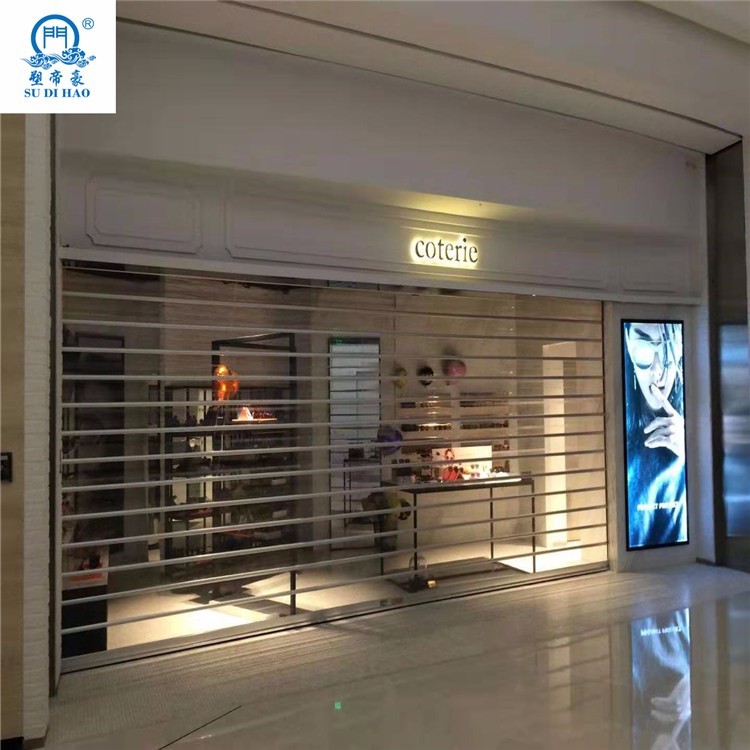

Application：Shopping malls,office buildings,villas,residentialareas,hotels,Banks etc.
Technical Details:
| Polycarbonate Coils Sheet Rolling Shutter Door DS-06 | ||
| Components | Parts | Materials &Technical information |

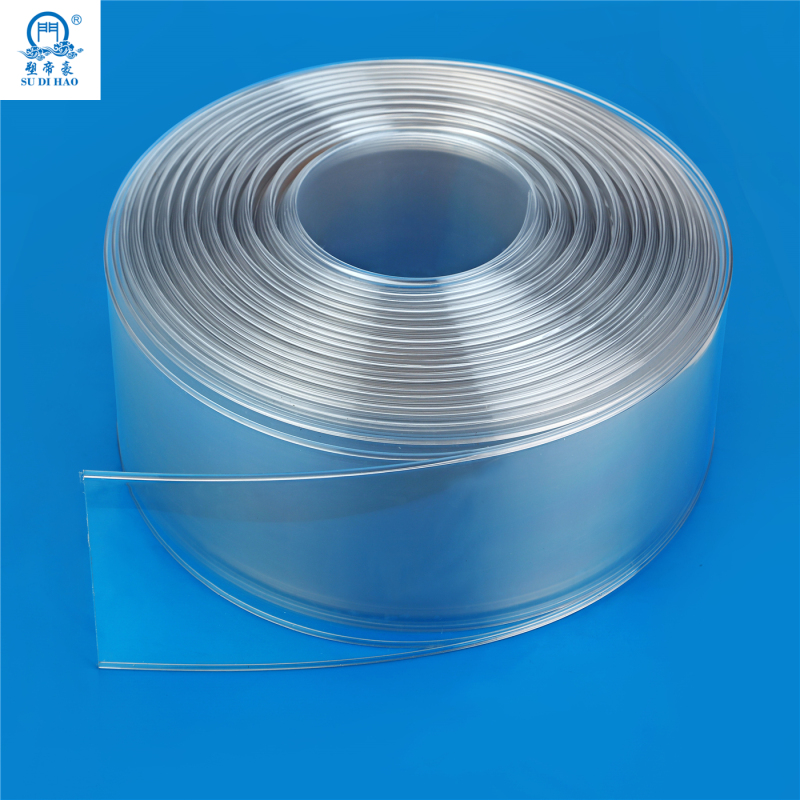

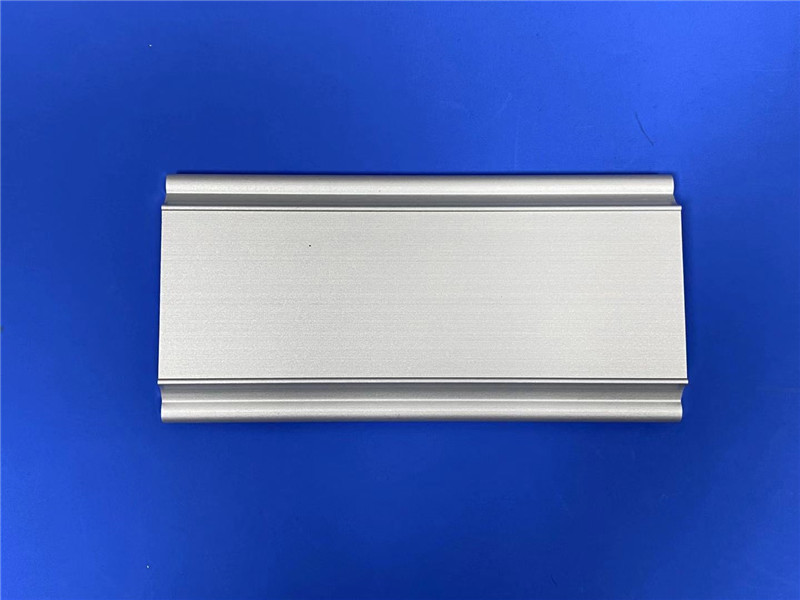

| Door panel | Door slat | Material：PC Thickness: 2.0mm/1.8mm/1.5mm/1.3mm Width：100mm/95mm/90mm/123mm/160mm/200mm |

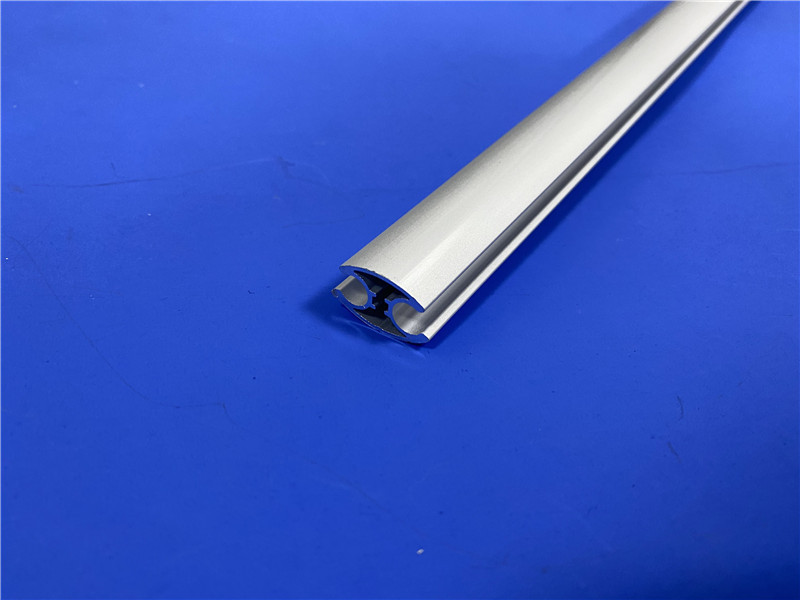

| Aluminium connection | Thickness: 1.2mm/0.8mm Color: White/sliver | |
| scroll | External Diameter：5''/8'' Thickness: 1.0mm/1.2mm/1.5mm | |
| Bottom bar | Aluminum alloy with rubber seal | |
| End cap | Nylon | |
| Gear box | Aluminum alloy Thickness: 1.0mm/2.0mm | |
| Guide channel | S.S. guide channel | Thickness: 1.2mm Width: 7cm Opening width：2.5cm |
| Aluminium guide channel | Thickness: 2mm Width: 8cm Channel Depth：5cm Opening width：2.5cm | |

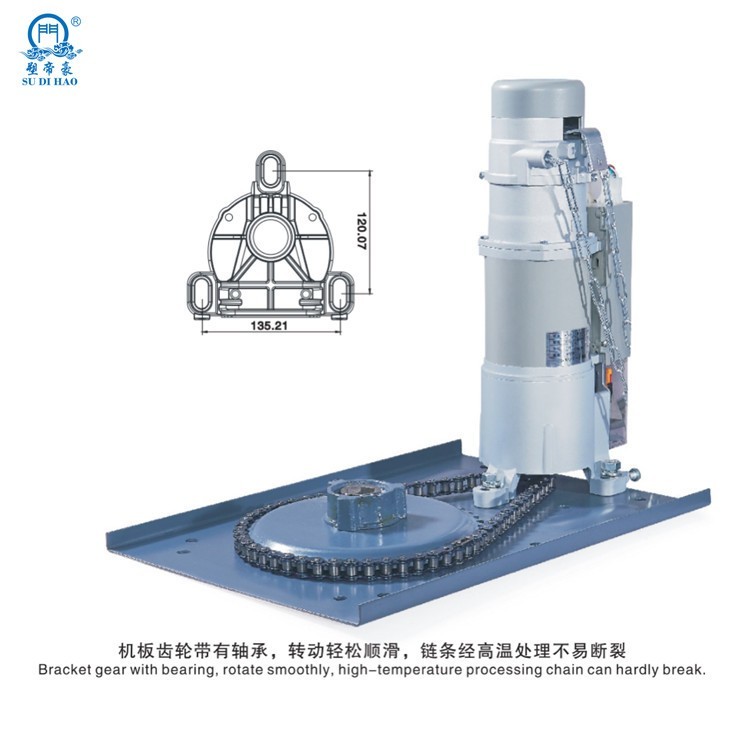

| Drive system | External motor | 200v 600kgs/800kgs/1200kgs |
| Tubular motor | 120N/110kgs,120N/130kgs,140N/150kgs | |
