Clear Appearance Electrical Roller Shutter Door
Clear Appearance Electrical Roller Shutter Door-
The complete door is Linked by aluminum alloy tube and crystal polycarbonate slats.
The roller shutter door are in high impact and easy cleaning characteristics.
- SUDIHAO
- Guangdong
- 5-10 days
Details

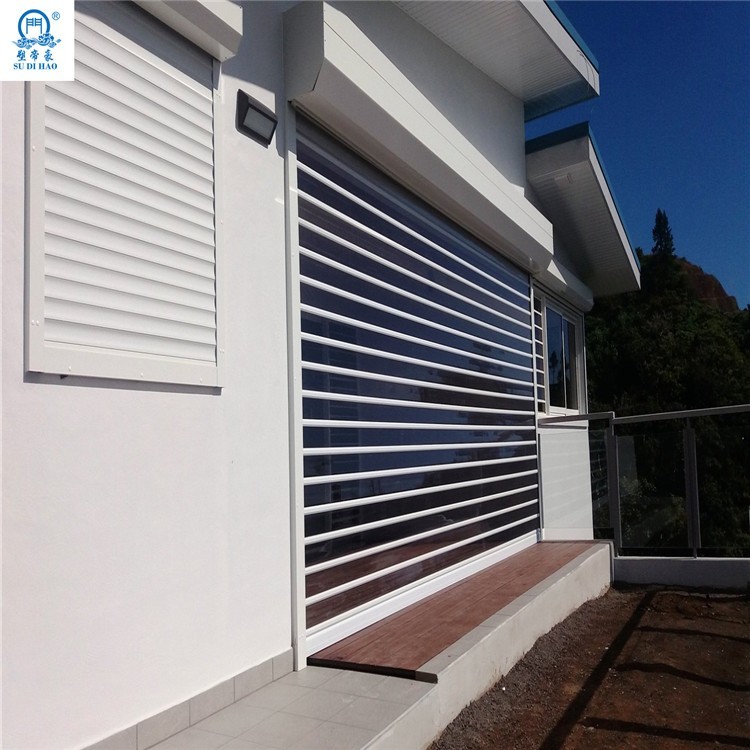

Clear Appearance Electrical Roller Shutter Door
It can display all the goods in shop and store .Both electrical and manual operation are available.
Application：Shopping malls,office buildings,villas,residentialareas,hotels,Banks etc.
| Polycarbonate Coils Sheet Rolling Shutter Door DS-06 | ||
| Components | Parts | Materials &Technical information |

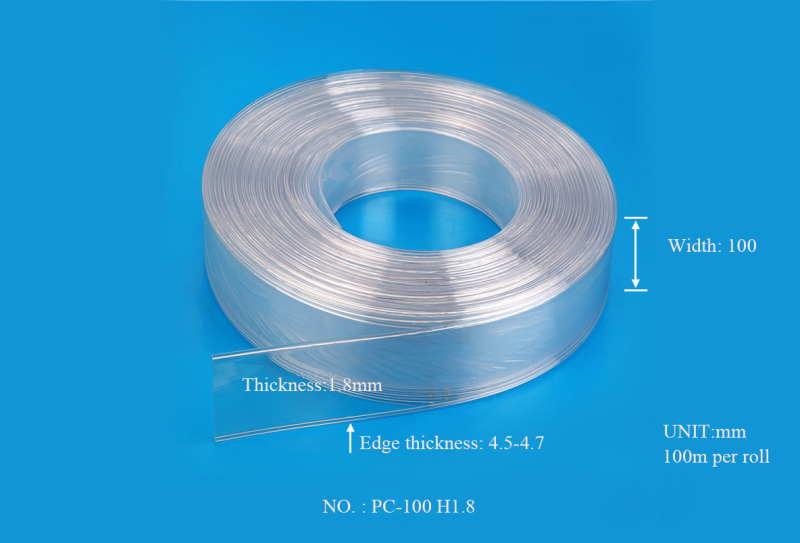

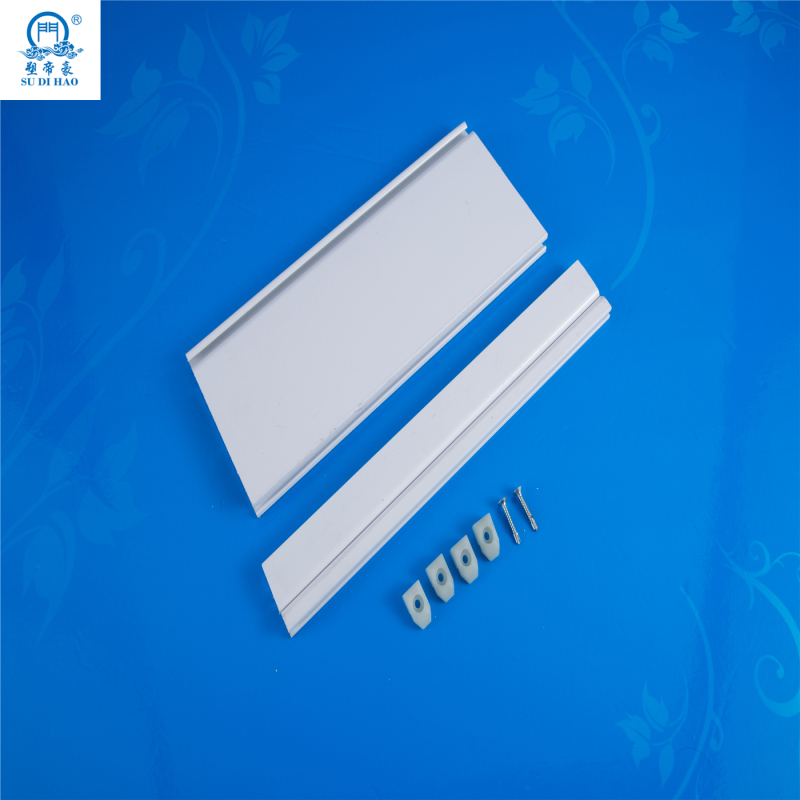

| Door panel | Door slat | Material：PC Thickness: 2.0mm/1.8mm/1.5mm/1.3mm Width：100mm/95mm/90mm/123mm/160mm/200mm |

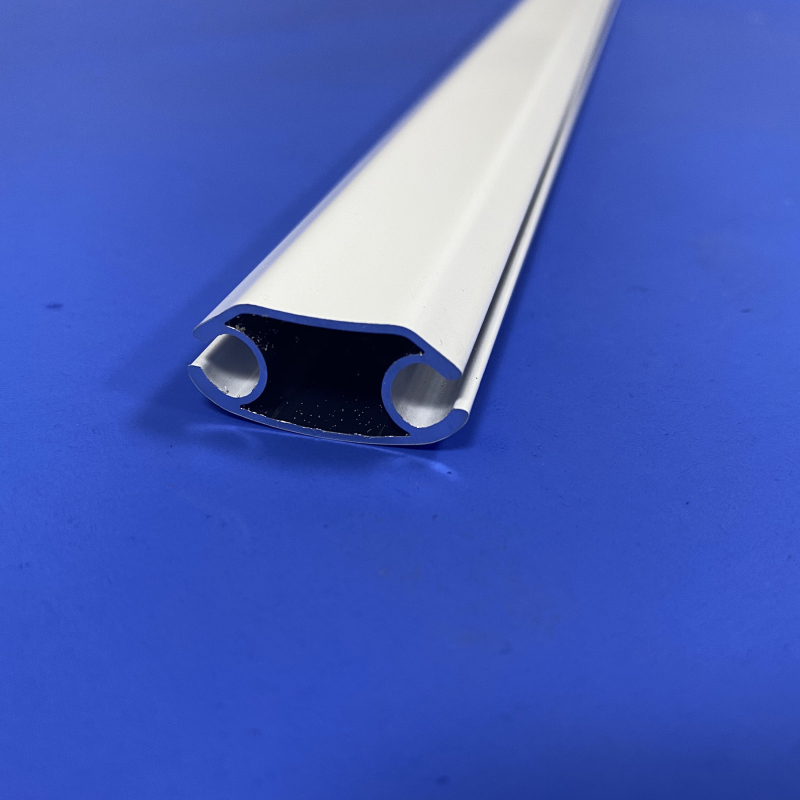

| Aluminium connection | Thickness: 1.2mm/0.8mm Color: White/sliver | |
| scroll | External Diameter：5''/8'' Thickness: 1.0mm/1.2mm/1.5mm | |
| Bottom bar | Aluminum alloy with rubber seal | |
| End cap | Nylon | |
| Gear box | Aluminum alloy Thickness: 1.0mm/2.0mm | |
| Guide channel | S.S. guide channel | Thickness: 1.2mm Width: 7cm Opening width：2.5cm |
| Aluminium guide channel | Thickness: 2mm Width: 8cm Channel Depth：5cm Opening width：2.5cm | |

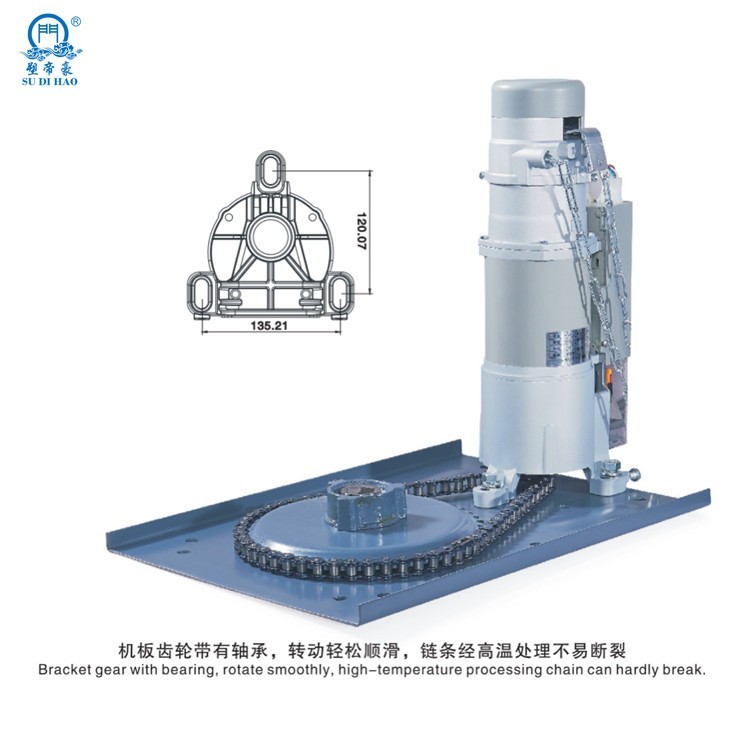

| Drive system | External motor | 200v 600kgs/800kgs/1200kgs |
| Tubular motor | 120N/110kgs,120N/130kgs,140N/150kgs | |
