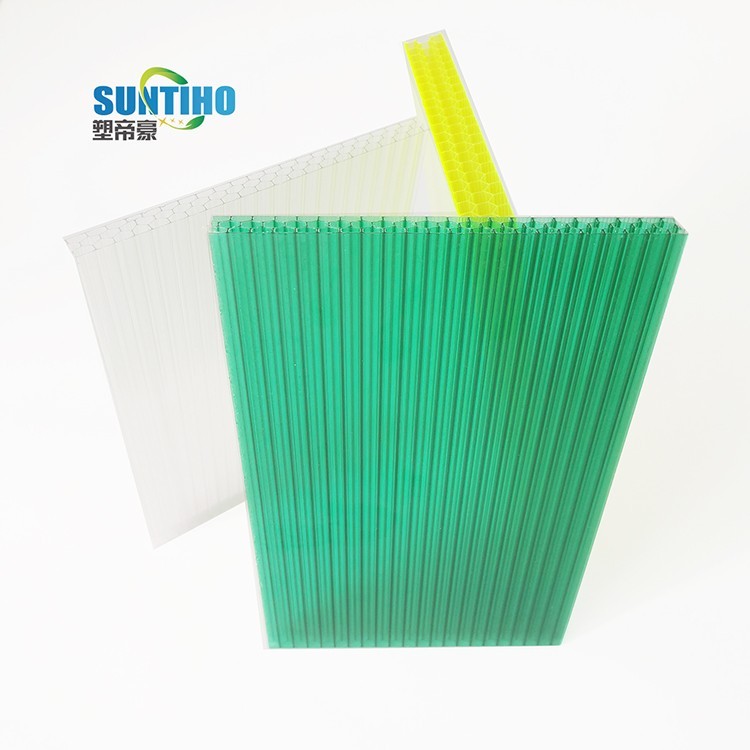

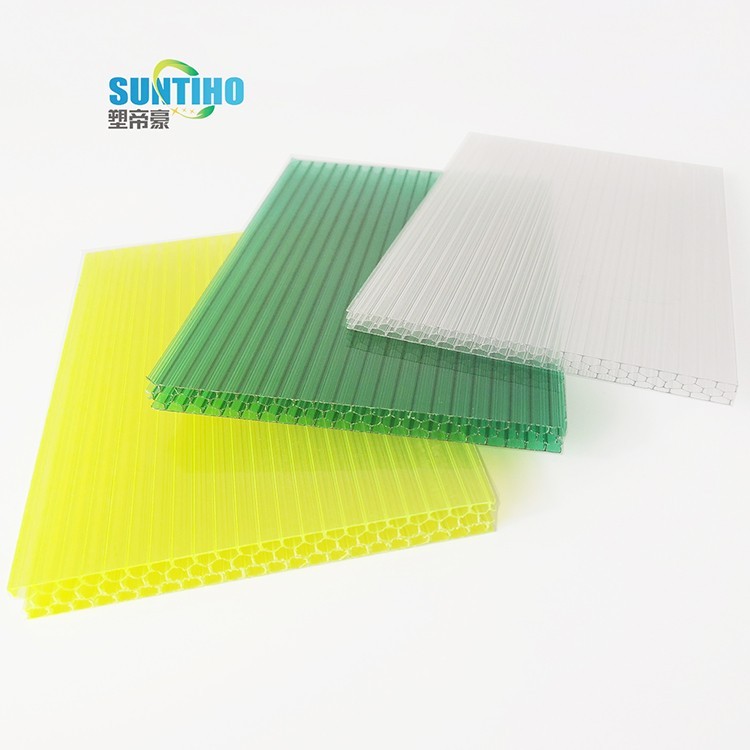

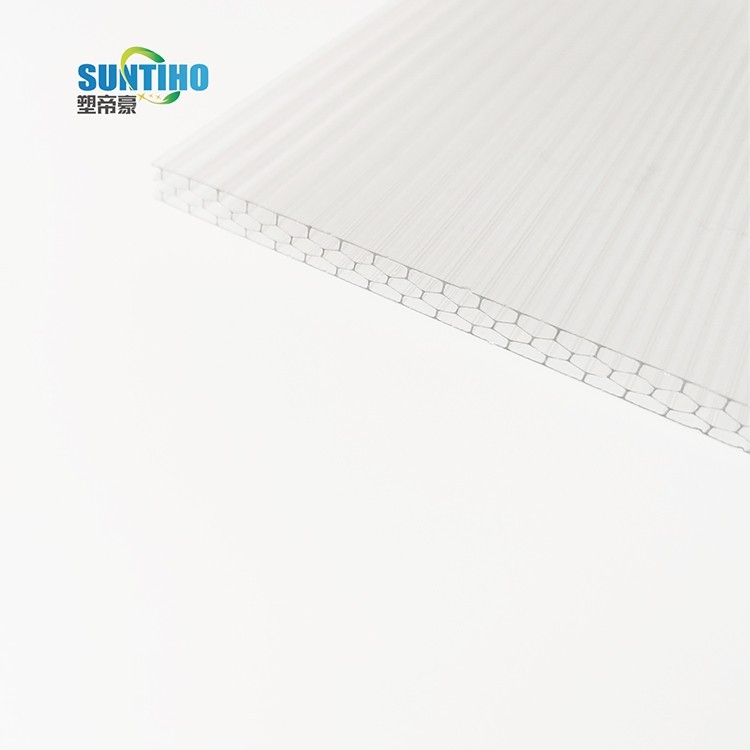

chinese-factory-8mm-clear-polycarbonate-sheet-pc-panel

1.Application: Public construction, Morden agriculture, Workshop, Warehouse light roof, Stadiums lighting roof, parking shed, Swimming pool roof etc.
2.We are a manufacturer with over 10 years experiences with our own designer team for many global companies.
3.We are one of the leading manufacturer in China with 3000 square meters factory and our products can meet all the requirements of quality.

  • SUDIHAO
  • Guangdong
  • 5-10 days
  • 6000 meters per day

Details

chinese-factory-8mm-clear-polycarbonate-sheet-


pc-panel




polycarbonate roof sheet jointing



Excellent polypropylene hollow sheet  Construction Polycarbonate Sheet- made of 100% pure polycarbonate material.

Mainly used as deflector for laminar-flow ventilation or air diffuser in commercia construction.


Products Features:

  1. Optional Functions:Anti-glare VO Anti-flaming Anti-infrared Anti-static Easy-cleaning Anti-fogging

  2. Advantages:Easy for installation,High heat preservation,Flexible,Anti-uv

  3. Application: Public construction, Morden agriculture, Workshop, Warehouse light roof, Stadiums lighting roof, parking shed, Swimming pool roof etc.


Impact strenght:
850J/m, the impact strenght of solid PC sheets is 250 times that of glass, 20-30 times
Light transmission:80%-90% for different thickness of clear color
UV resistance:with our 50um thickness UV layer, the sheet can filter 99% ultraviolet radiation in sunlight
Specific gravity:1.2 g/cm
Coefficient of thermal:0.065 mm/moC
Temperature:-40oC to 120oC
Heat conductivity:2.3-3.9 W/m² oC
Tensile strenght:>60N/mm²
Flexural strenght:100N/mm²
Modulus of clasticity:2400mPa



Tensile street at break:>65mPa
Elongation at break:>100%
Specific heat:1.16j/kgk
Heat deflection temperature:140oC
Soundproff index:4mm thickness--27dB,5mm--28dB, 6mm--29dB,8mm--31dB,10mm-32dB

6mm polycarbonate roofing sheets


polycarbonate roof tiles sheet




Product use


1. Decoration in landscape gardening and Singular decoration, corridors and pavilions in leisure places.

2. Interior and exterior decorations of commercial building, curtain walls of modern building.

3. Transportation airline, containers, front wind shields of Motorcycles. Airplanes, trans, liners, vehicles, motors boats, submarines and police glass shields.

4. Telephone booths, advertising boards, light boxes and exhibition

5. Instruments and meters, and military industry.

6. High class indoor decoration, such as walls, windows roofs and screens.

7. Sound-insulation walls in expressways ans urban overhead highways.

8. Agricultural greenhouses and raising sheds.

9. Lighting of factory buildings, warehouse and markets.

polycarbonate roof sheet jointing


POINTS To NOTEFOR PC BOARD

NO.1: STORAGE AND TRANSPORTATION

1.Avoid putting heavy or sharp cargo on/near PC sheet.

2.PC sheet with roll packing need to be loaded and unloaded mechanically or byVehicle springboard.

3. Store PC sheetin a cool place instead of outdoor.



NO.2: CUTTING

1.PC Hollow Sheet can be cutting by sharp wallpaper and PC Solid Sheet can becutting by arm saw.

2.Fix the PC sheet before cutting , in order to avoid sheet tear caused by violentvibration.



NO.3: INSTALLATION

1.Use aluminum material strip to seal all the edge of PC sheet before installation.

2. The side of PC sheet with anti UV mark must face out during installation.

3.The installation personnel can not stand on PC sheet during installation.

4.Keep the PC sheet cleaning after installation

6mm polycarbonate roofing sheets

CLEANING AND MAINTENANCE


NO.1: CLEANING AND MAINTENANCE OF PC BOARD

Use appropriate method and tool to make periodic cleaning for PC sheet , thatway can prolong the service life of PC sheet.



NO.2: SMALL AREA CLEANING

1.Flushing with neutral soap or household detergent mixed with warm water, andremove dust and dirt with soft fabric or sponge;

2.Flushing with cold water and wipe off the dry spots with a soft duster cloth afterdrying.



NO.3: LARGE AREA CL EANING

1..lushing with faucet or high-pressure water gun.2.Water additive should be compatible with PC sheet.



No.4: PRECAUTIONS FOR CLEANING

1.Do not polish, do not clean the PC sheet with strong base or wipe the face of PCsheet by dry cloth or stiff brush .

2.Do not use butyl fibrinolytic agent and isopropanol solution to clean the UV - proofPC sheet.



NO.5: RECOMMENDED CL EANING SOLVENT

Use Anhydrous alcohol, petroleum ether (BP65), ethane, conane to clean. In orderto avoid the PC sheet and insoluble chemicals in contact.

polycarbonate roof tiles sheet

Our Advantage


NO.1: WHY CHOOSE US

1.We have many professional engineers with rich experience,qualified products andperfect service system.

2.We have best solution for you, and we provide all the support you need to achieveoptimum results or value, or both, from whatever products you buy.

3.We provide 12 month warranty for all products and accessories, and custom madedoor size/color/material

4.We can provide free samples to all clients, and make special design according toclient' s requirement.

5.We have been cooperate with many famous company, like KOHLER/AVON/HONDA/TOYOTA/PEPSI,AMWAYETC.

NO.2: QUALITY CONTROL

our product testing process is strictly monitored to ensure the best quality for ourclients. We inspect every step of production from basic material to the finishedproducts to make sure the product are 100% qualified.

NO.3: AFTER SALES SERVICE

Our customer service executive are experienced products specialists,who can answerall your question.

polycarbonate roof sheet jointing


FAQ


FREQUENTLYASKED QUESTIONS

1. ARE YOU FACTORY?

Yes,We are factory.


2. IS OEM ACCEPTABLE?

Yes. OEM & ODM are accepted. Please contact us for details.



3. CAN YOUR FACTORY MAKE CUSTOMIZED PRODUCTS?

We can make customized products especially for you; please kindly contact us formore details.


4. HOW IS YOUR FACTORY PRODUCTION CAPABILITY?

Guangdong SUDIHAO  Intelligent Technology Co.Ltd has a full production line indluding automaticinjection line, Cutting line, Polishing line, CNC Line, Infrared bridge cutting machineand Water jet machine.


5. WHAT IS THE PAYMENT TERM?

T/T 30% deposit down payment, 70% before the shipping,

L/C, D/P, Western Union, PayPal according to dfferent condition.



6. HOW ABOUT THE DELIVERY TIME?

After receive the deposit:- Sample order:within 1 days;· 20FT container: 25 days;- 40HQ container: 30 days.



7. CAN YOU ARRANGE THE SHIPPING?

Of course, we have regular forwarder to arrange by air or by sea.



8. IS IT POSSIBLE TO VISIT JIEYANG FACTORY?

Of course, welcome

6mm polycarbonate roofing sheets
